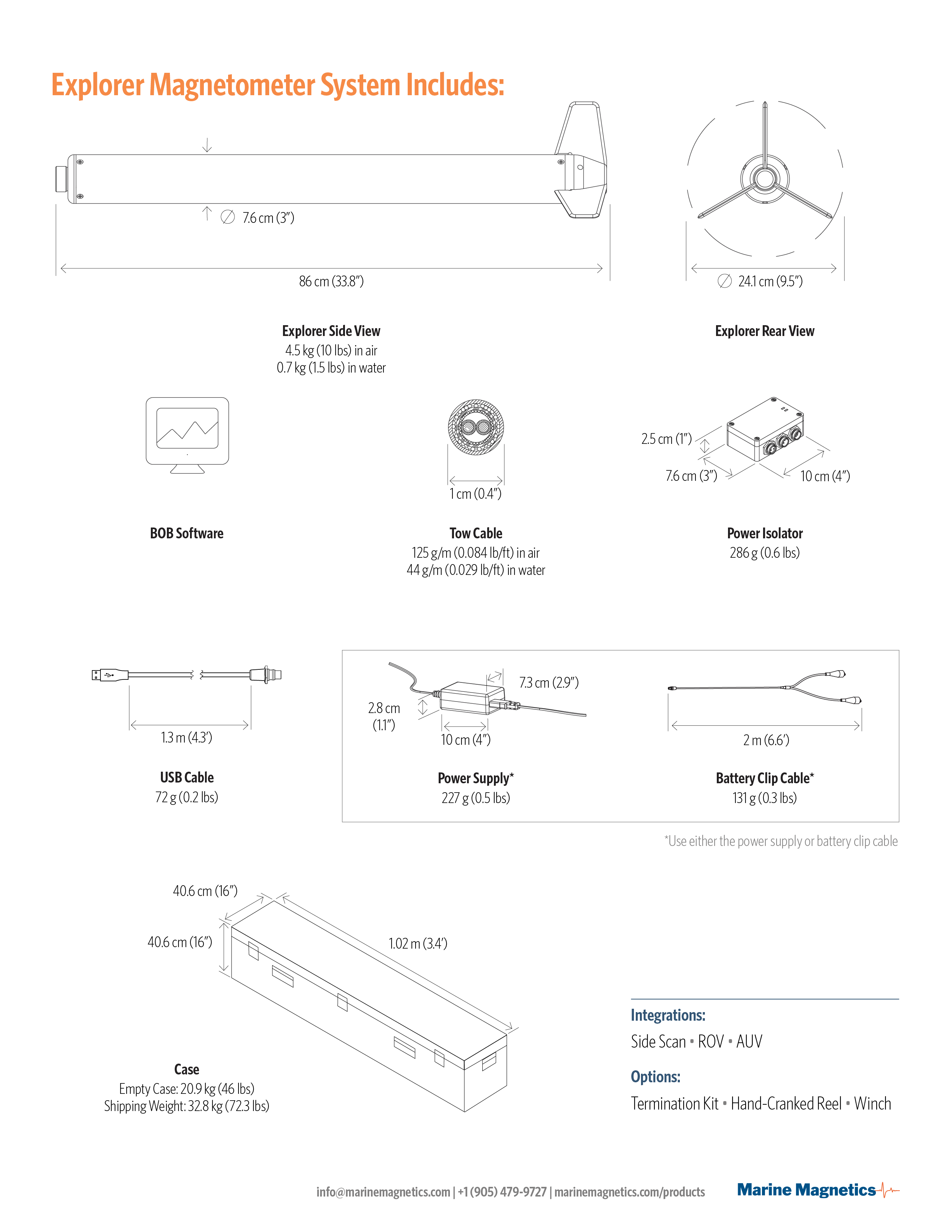

The Explorer comes with:

Explorer Includes

  • Overhauser sensor
  • Electronics module with Larmour counter
  • Leak detector
  • Depth rating 1000m (1420 psi)

Additional Components

  • Power isolator
  • 24V universal AC power supply or battery clip cable
  • USB or RS-232 cable
  • BOB data acquisition and visualization software
  • Tow cable, length to be determined by customer
  • A custom shipping case
Operating Zones Worldwide. Explorer collects accurate results regardless of how it’s pointed in relation to Earth’s magnetic field.
Absolute Accuracy 0.1 nT
Sensor Sensitivity 0.02 nT
Counter Sensitivity 0.001 nT
Resolution 0.001 nT
Dead Zone NONE
Temperature Drift NONE
Power Consumption 2 W
Range 18,000 nT to 120,000 nT
Gradient Tolerance Over 10,000 nT/m
Sampling Range 4 Hz – 0.1 Hz
Communications RS-232, 9600 bps
Power Supply 9-30 VDC or 100-240 VAC
Length 86 cm (33.75 in)
Diameter 7.6 cm (3 in)
Weight in Air 3.8 kg (8.5 lbs)
Weight in Water 1.2 kg (2.6 lbs)
Tow Cable
Conductors Four + Shield
Breaking Strength 2,500 kg (5,500 lbs)
Outer Diameter 1 cm (0.4 in)
Weight in Air 122 g/m (8 lb/100 ft)
Weight in Water 24 g/m (2 lb/100 ft)

Side Scan Integration

Integrations for SeaSPY2, SeaQuest2, Explorer and Synapse.

AUV Towed Integration

Using high sensitivity technology for unmatched accuracy, low noise and power, our products are ideal to integrate with AUVs.

ROV Integration

Info coming soon! In the meantime, contact us to learn about the ROV integration: +1 (619) 655-0179, gina.lopez@marinemagnetics.com
