SeaSPY

Plan Your Survey. Not Your Sensor.

You know what’s better than a well-worn survey setup routine?
No survey setup routine.

Warm-up, gas cells, and line planning around dead zones aren’t endemic to magnetometry. Just cesium.

Applications:

Ideal for cable and pipeline survey

Deployments:

Boat TowSide Scan

Gradiometry Systematized

Rigid frame gradiometers are best suited for short-baseline applications where relative positional accuracy is key.

Eliminate geological and diurnal interference to detect small ferrous targets in real time.

Track cables or pipelines from relatively high towing altitudes.

Start recovery efforts while the survey’s still in progress.

Build Quality

Specialization matters

Short Baseline

Eliminate geological and diurnal interference, and emphasize near-surface objects in real-time so that recovery efforts can be started while the survey is in progress.

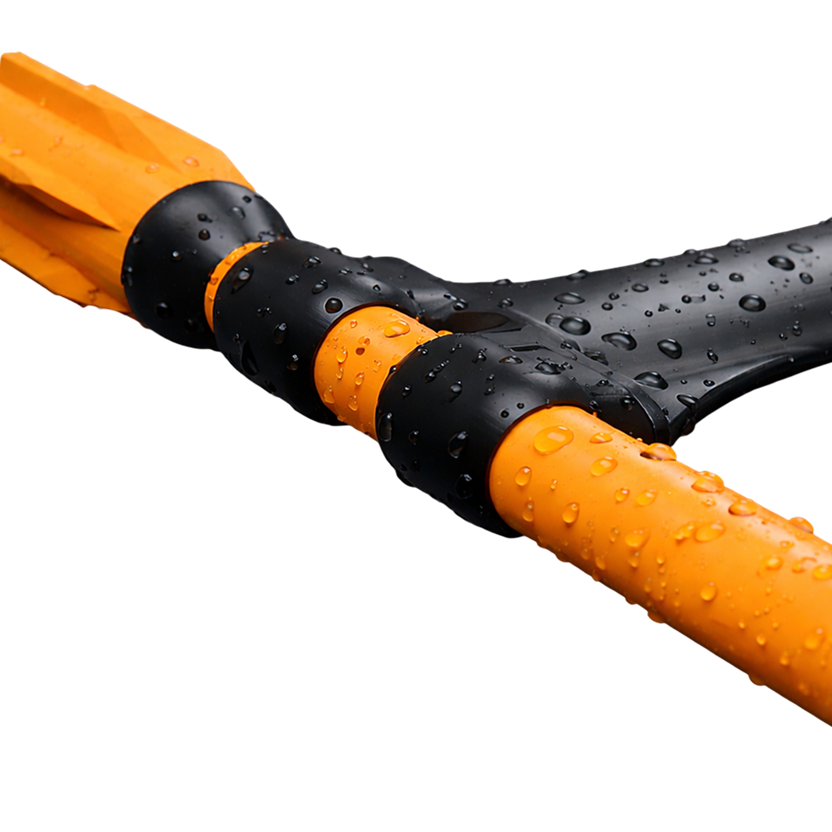

Anodized composite frame

Reduces drag by a factor of 10. It’s lighter to carry on land but actually stronger. New!

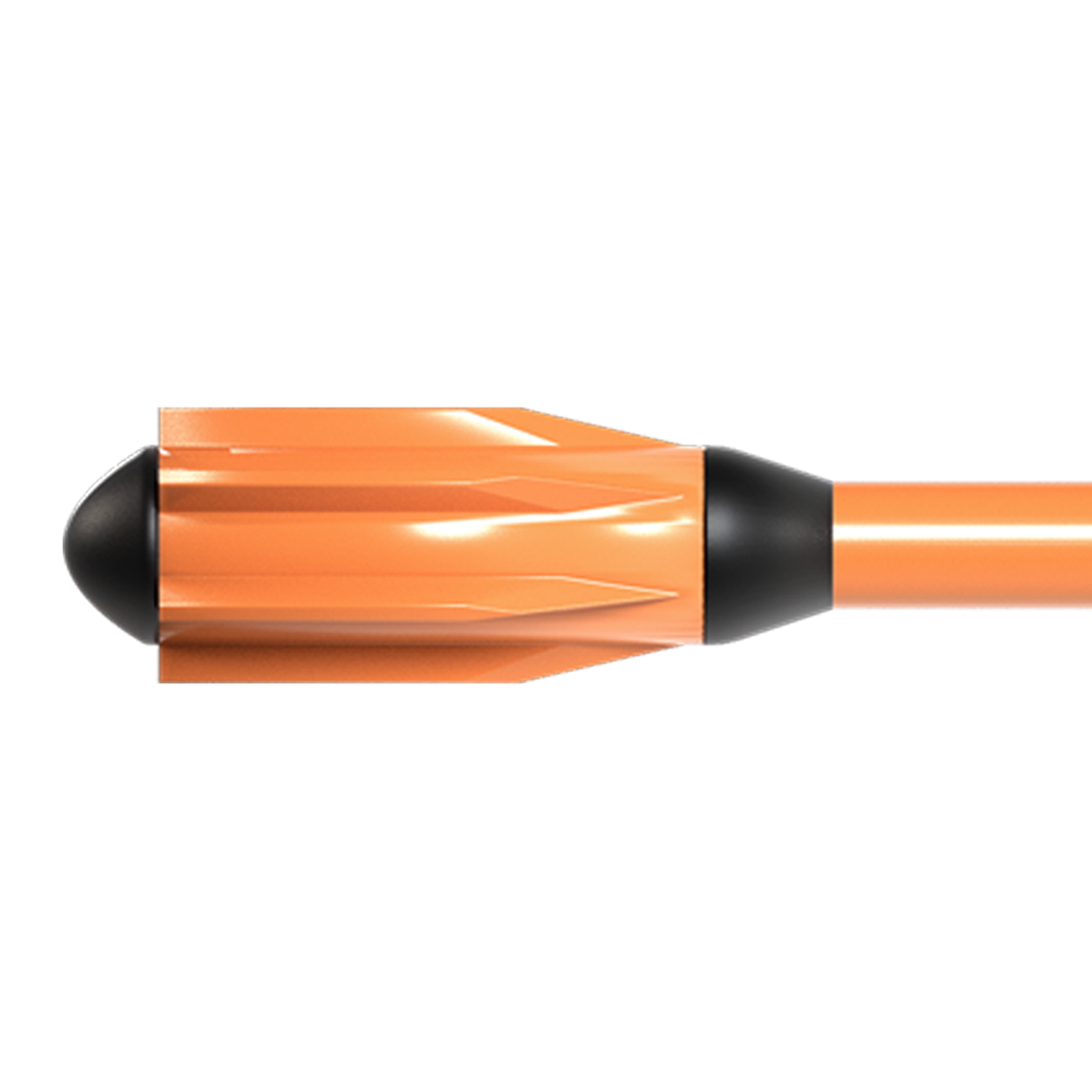

Sleek stable Design

Resists snags and minimizes impacts. The polyurethane coated tail with molded fins acts as a bumper, while creating a stable towing platform.

Unmatched Absolute Accuracy

0.01 nT accuracy and unmatched repeatability between sensors ensures best possible data.

Quick Glance Diagnostics

Automatic poxwer supply cutoff, and leak detection give you plenty of time to pull the mag before damage.

Works Instantly on Power-up

Data collected at –40°C will be identical to data collected at +60°C even without warmup.

Make SeaSPY2 H-Grad a perfect fit for your application.

Size + Weight

Magnetometer
Length: 119 cm
Diameter: 7.6 cm
Weight in air: 12 kg
Weight in water: 3.5 kg

Gradiometer Frame
Dimensions: 1.6 x 0.35 m
Weight: 10.4 kg

Sensor

Tuned Overhauser for absolute accuracy

Operating Zones: Worldwide
Measurement Type: Scalar

Absolute Accuracy: 0.1 nT
Sensitivity: 0.01 nT (0.02 nT optional)
Counter Sensitivity: 0.001 nT
Resolution: 0.001 nT
Dead Zone: NONE
Heading Error: NONE
Temperature Drift: NONE
Gradient Tolerance: Over 10,000 nT/m
Range: 18,000 nT to 120,000 nT
Sampling Rates: 4 Hz – 0.1 Hz

Operation

Depths ratings: 1000m, 3000m, 6000m
Power Consumption: 1 W standby, 3 W maximum (+2 W with altimeter)
Power Supply: 24VDC (120-240 VAC compatible)(Acceptable range 9-30 VDC for single SeaSPY, 20-30V for gradiometers)

Data

Communication: RS-232, 9600 bps

Cable Options

Standard Tow Cable

Conductor: Twisted pair (2)
Strength Member: Vectran Braid
Breaking Strength: 2,700 kg
Working Load: 450 kg
Outer Diameter: 10.4 mm
Weight in Air: 120 g/m
Weight in Water: 30 g/m
Cable Termination: Field Replaceable
Data interface: FSK
Material: Yellow PU
Ideal for: Heavy duty towing over FSK

Flotation Tow Cable

Conductor: Twisted Pair (2)
Strength Member: Vectran Braid
Breaking Strength: 2,700 kg
Working Load: 450 kg
Outer Diameter: 19.1 mm
Weight in Air: 285 g/m
Weight in Water: -9 g/m
Cable Termination: Field Replaceable
Data interface: FSK
Material: Orange PU
Ideal for: Shallow water towing, SSS towing

System

Integrated
Electronics module with Larmour counter
Leak Detector

Optional: Pressure sensor, Altimeter

Gradiometer Frame

Software

BOB Survey Software

Easily plan, configure, execute, and analyze your survey –free and native for all our magnetometers. Add-on: Make near-time Total Field and Analytic Signal maps from your survey data.
